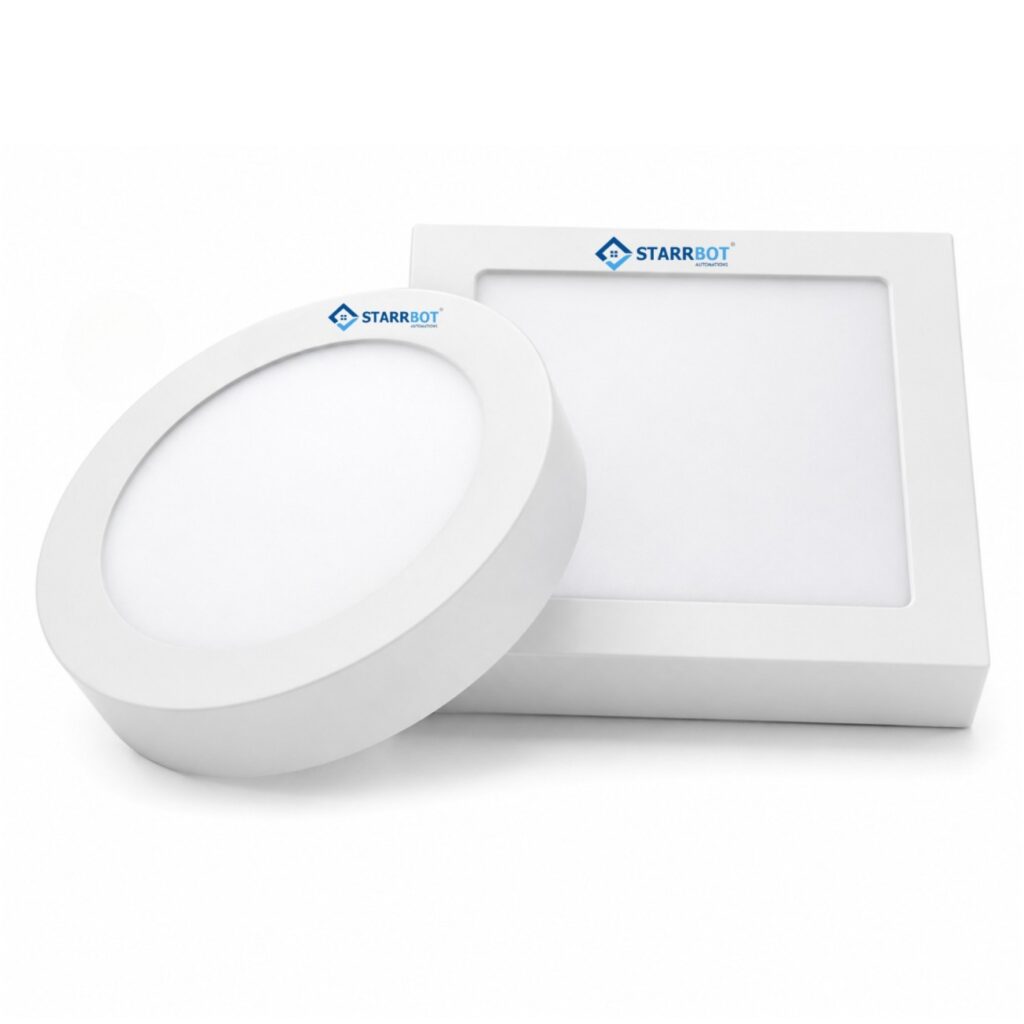

Motion Sensor Surface Panel | 12W | 5 Inch | Aluminium Body

Description

StarrBot Motion Sensor Surface Panel – Enhance Safety and Style

Elevate both the security and ambiance of your home or workplace with the Motion Sensor Surface Panel | 12W | 5 Inch | Aluminium Body. This intelligent lighting solution is designed to offer safety, energy efficiency, and style, making it ideal for residential, commercial, and industrial spaces. The built-in motion sensor detects movement, offering automatic lighting while acting as a deterrent to potential intruders. Additionally, the soft ambient lighting adds a touch of elegance to any environment, creating the perfect balance between functionality and design.

This surface panel features advanced auto-dimming functionality, automatically adjusting light levels from 15% to 30%, providing optimal brightness while minimizing energy consumption. The sleek, modern design ensures seamless integration with any interior, offering both high-tech performance and an aesthetically pleasing appearance.

Key Features:

✔ Built-In Sensor and LED Driver – The integrated motion sensor and LED driver provide seamless functionality, ensuring efficient and hands-free operation.

✔ 2-Step Dimming Control – The light can automatically dim to 15% or 30% brightness, allowing for energy savings without compromising on illumination.

✔ Wide Detection Area – The sensor has an impressive detection range of up to 8 meters, ensuring your space is always well-lit when needed.

✔ Stable & Reliable Detection – Advanced motion sensing technology ensures accurate detection without false triggers, providing safety and convenience.

✔ Safety Features – The light is designed with single-end power and anti-electric shock features for optimal safety during installation and use.

✔ Maximum Efficacy and Minimum Glare – The high-efficiency design ensures excellent light output with minimal glare, creating a comfortable and bright space.

✔ High-Tech Optical Design – The light fixture is engineered with advanced optics for even and consistent light distribution, creating an elegant lighting atmosphere.

Specifications:

• Input Power: Available in 12W, 15W, 18W, and 22W options
• Operating Voltage: 185V – 265V AC
• Operating Frequency: 47-63Hz
• Surge Protection: 3KV for 10W, 3.5KV for 20W
• Lumens: 1200 lm (10W), 2300 lm (20W)
• Colour Options: Cool White (CW), Natural White (NW), Warm White (WW)
• Colour Temperature: 3000K (Warm), 4000K (Natural), 6500K (Cool)
• CRI: >80%
• Viewing Angle: 120°
• Sensor Type: Microwave Sensor
• Max Sensor Detection Distance: 8 meters
• Detection Angle: 160°
• Mounting Height: 2m to 6m
• Hold Time: 20 sec / 60 sec
• Standby Dimming Level: 15% to 30%
• Operating Temperature: -20°C to +60°C
• Dimming Control: Auto Dimming / Auto On/Off

Physical Characteristics:

• Body Material: Metal Aluminium
• Cut-out Size: 4″, 5″, 6″, 7″, and 8″
• Model: Available in Surface and Concealed installation styles
• LED Make: Ever Star / Bridgelux
• LED Lumens: 120 Lumens per watt (1W)

Additional Features:

• Long Life & High Efficiency: The light boasts a rated lifetime of up to 50,000 hours, reducing maintenance costs significantly.
• Environmentally Friendly: Free of UV and mercury (Hg), ensuring safety and eco-friendliness.
• IP20 Ingress Protection: Suitable for indoor use, providing protection from dust and debris.
• High Uniformity: Delivers consistent light coverage, making it perfect for retail, commercial, and industrial applications.
• Overload, Over Voltage, Short Circuit, and Reverse Polarity Protection: Built-in safeguards ensure the fixture operates safely under various conditions.

Applications:

✅ Offices – Enhance office lighting with intelligent motion sensing to improve energy efficiency and create a modern, functional atmosphere.

✅ Institutional & Educational Spaces – Perfect for hallways, classrooms, and public areas where energy savings and reliable lighting are a priority.

✅ Parking Areas & Warehouses – Brighten these large spaces with hands-free lighting, ensuring safety and reducing energy consumption.

✅ Factories & Industrial Spaces – A cost-effective and reliable lighting solution for large spaces with high ceilings.

✅ Corridors & Lobbies – Illuminate high-traffic areas with automatic, energy-efficient lighting for improved safety and convenience.

Compliance & Standards:

• EN61000-3-3: Limitation of voltage fluctuations and flicker in low voltage supply systems
• IEC 62031: LED modules for general lighting – Safety specifications
• IS 15885-2-13: Safety of lamp control gear – Part 2, particular requirements for electronic control gear for LED modules
• IS 16104: Performance requirements for electronic control gear for LED modules

Why Choose StarrBot Motion Sensor Surface Panel?

The StarrBot Motion Sensor Surface Panel | 12W | 5 Inch | Aluminium Body offers an intelligent solution that enhances safety, energy efficiency, and lighting control. Its advanced features, sleek design, and long-lasting performance make it an ideal choice for both residential and commercial applications. Whether you’re upgrading your office, installing lights in a parking lot, or enhancing a lobby, this product delivers intelligent lighting that adapts to your space’s needs.

Choose StarrBot for a smarter, more efficient lighting solution that offers safety, style, and energy savings, all backed by a commitment to quality and innovation!
